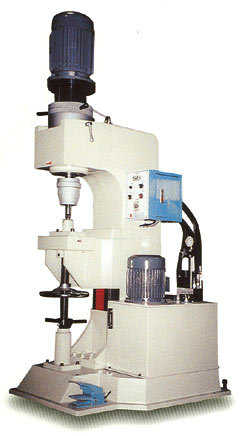

＊-TYPE VERTICAL WITH FULL BRACKET TYPE


BIG SIZE HYDRAULIC RIVETING MACHINE
 This machine can directly rivet low carbon steel up to 30mm diameter and also can spread the tube's diameter up to 75mm to avoid the process of preheating..



Item Model ST-180
Riveting Capacity Solid Rivet 10-30ψ
Max.Stroke 30 m/m 75 m/m
Max.H.Die-head to bed 190 m/m
Spindle Revolution 1160 RPM
Max.depth 320 m/m
Drive Motor 5 x 3 HP
pressure used (kg/cm2) 20-70 kg
Adjusting work time 1-6 or 1-12 Sec
Net Weight 1400 kg
Height of Machine m/m 2300
Width m/m 750
Length m/m 1020
