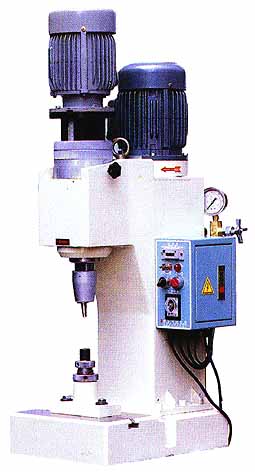

K-TYPE DESKTOP WITHOUT BRACKET TYPE


DESKTOP HYDRAULIC RIVETING MACHINE
Suitable for riveting under 8mm's work.
For example: All sorts of mechanical parts, auto or motorcycle parts, all sorts of pincers, scissors, all sorts of conveyor chains, accessories of office desk, brake railing, clutch, all sorts of key products, medium or small size of key products, medium or small size of moveable wheels...etc.
Optional: Bracket at the base of machine
Item Model ST-100K
Riveting Capacity
5-12ψ
Max.Stroke 35 m/m
Max.H.Die-head to bed Min 30mm Max220mm
Spindle Revolution 1720 RPM
Max.depth 180 m/m
Drive Motor 1/2 x 1 HP
pressure used (kg/cm2) 5-70 kg
Adjusting work time 1-6 Sec
Net Weight 370 kg
Height of Machine m/m 1700
Width m/m 500
Length m/m 800
