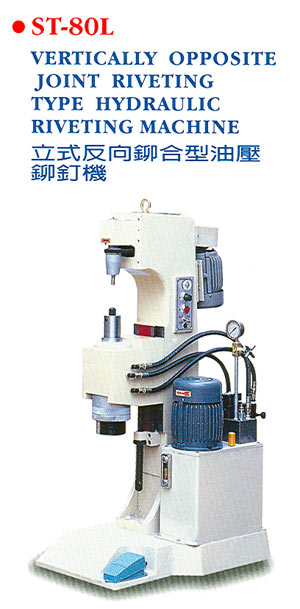

L-TYPE VERTICAL OPPOSITE JOINT RIVETING TYPE



VERTICALLY OPPOSITE
JOINT RIVETING
TYPE HYDRAULIC
RIVETING MACHINE
This model is suitable for the riveting items which are under 8 mm.
For example: All sorts of bend chairs, all sorts of chairs, movie director chairs and all sorts of folding table big type brake railing.

Item

ST-80L

Riveting Capacity

Solid Rivet 1-8ψ Hollow 3-14ψ

Max.Stroke

35 m/m

Max.H.Die-head to bed

Min 50mm /  Max 250mm

Spindle Revolution

1720 RPM

Max.depth

180 m/m

Drive Motor

1/2 x 1 HP

pressure used (kg/cm2)

5-70 kg

Adjusting work time

1-6 Sec

Net Weight

340kg

Height of Machine m/m

1600

Width m/m

480

Length m/m

700
