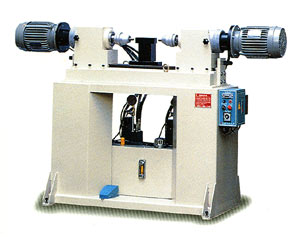

R-TYPE HORIZONTAL WITH TWIN HEADS TYPE


HORIZONTALLY MOUNTED
WITH TWIN HEADS TYPE
HYDRAULIC RIVETING MACHINE
This model is suitable for the double side riveting of all sorts of conveyor chains, all sorts of pincers, pliers, secateurs and hinges which are under 8mm.
Item Model ST-100R
Riveting Capacity Solid Rivet 5-12ψ
Max.Stroke 35 m/m
Max.H.Die-head to bed 20-220 m/m
Spindle Revolution 1720 RPM
Max.depth 161 m/m
Drive Motor 1 x 1 HP

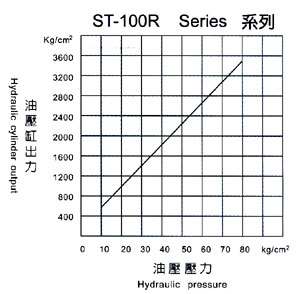

pressure used (kg/cm2) 5-70 kg
Adjusting work time 1-6 Sec
Net Weight 800 kg
Height of Machine m/m 1500
Width m/m 1750
Length m/m 600
