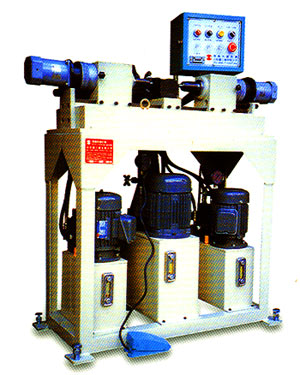

HORIZONTALLY MOUNTED WITH TWIN HEADS TYPE HYDRAULIC RIVETING MACHINE
The model st-60r series are suitable for the precision micro processing under 1-0.5mm
Ex:clock/watch head,watch band,slider/bases/cases of electronics & electronic appliance,accessories or parts of auto or motorcycle,optical instrument and all sorts of hardware etc or other special riveting.
Item Model ST-60R
Riveting Capacity Solid Rivet 0.5-5ψ
Max.Stroke 30 m/m
Max.H.Die-head to bed 120 m/m
Spindle Revolution 1500 RPM
Max.depth 85 m/m
Drive Motor 1/8 x 1/2 HP

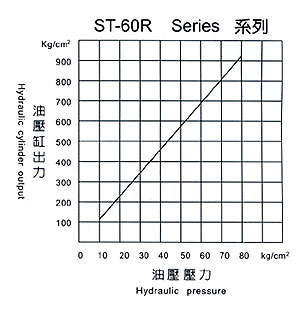

pressure used (kg/cm2) 5-60 kg
Adjusting work time 1-6 Sec
Net Weight 220 kg
Height of Machine m/m 1200
Width m/m 400
Length m/m 1000
