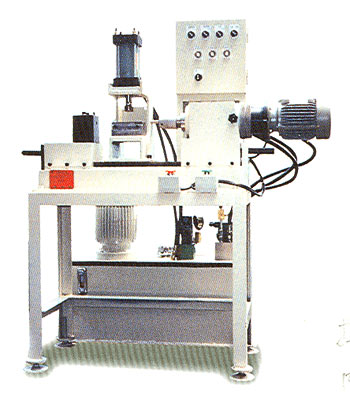

R-TYPE HORIZONTAL WITH TWIN HEADS TYPE


HORIZONTALLY MOUNTED
WITH TWIN HEADS TYPE
HYDRAULIC RIVETING MACHINE
This model is suitable for the double side riveting of all sorts of conveyor chains, all sorts of pincers, pliers, secateurs and hinges which are under 8mm.
Item Model ST-80R1
Riveting Capacity Solid Rivet 1-8ψ
Hollow Rivet 3-14ψ
Max.Stroke 35 m/m
Max.H.Die-head to bed MIN50 MAX250
Spindle Revolution 1720 RPM
Max.depth 161 m/m
Drive Motor 1/2 x 1 HP
pressure used (kg/cm2) 5-70 kg
Adjusting work time 1-6 Sec
Net Weight 750 kg
Height of Machine m/m 1350
Width m/m 1700
Length m/m 600
