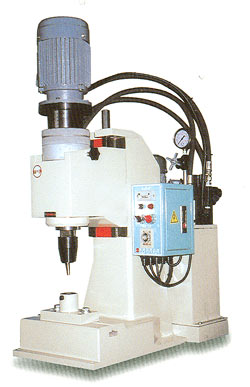

S-TYPE DESKTOP WITH FULL MOVEABLE BRACKET TYPE


DESKTOP HYDRAULIC
RIVETING MACHINE
 Suitable for riveting under 8mm's work.
For example: All sorts of mechanical parts, auto or motorcycle parts, all sorts of pincers, scissors, all sorts of conveyor chains, accessories of office desk, brake railing, clutch, all sorts of key products, medium or small size of key products, medium or small size of moveable wheels...etc.
Optional: Bracket at the base of machine
Item Model ST-100S
Riveting Capacity Solid Rivet 5-12ψ
Max.Stroke 35 m/m
Max.H.Die-head to bed Min30mm Max 220mm
Spindle Revolution 1720 RPM
Max.depth 180 m/m
Drive Motor 1 x 1 HP
pressure used (kg/cm2) 5-70 kg
Adjusting work time 1-6 Sec
Net Weight 240 kg
Height of Machine m/m 1200
Width m/m 400
Length m/m 650
